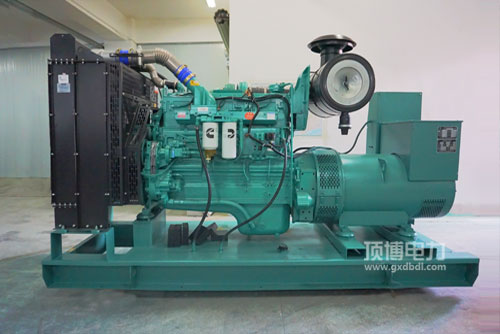

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用启倾向汽柴油生活性好: 高级的汽柴油掌握体系，独特的STC、ESTC 分级分类掌握体系，异常设计方案的缸筒顶部然烧室，高压力喷涌汽柴油，更加充足雾化吸入，然烧更加充足。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用热车机瞬态使用性能优异的: 完满的热车机整体性来设计，搭配康明斯差异化的的EFC模式，调整控制精高，回复时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用启心理升输出高: 整体结构定制主体工程.形壮摆置合理的，使用稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷手机型号 QSNT. QSK19. QSK38. QSK50满足了华人非道路交通再者时候及北美地区Tier2. Tier 3排放口法律法规请求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件必得性好， 汽车发因素正常运作及维护日常护理方便，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率标准 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯发电机组用发起机的基本特征：质量小， 减少变高， 集水管大气烧水，非常容易初始化，移动式车载多媒体电的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机参数	通常用效率(kW)Prime Power	预留工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
